Heavy Duty Flat Metal Washers Plate Round Carbon Steel Prevent Loosening / Leaks

Handan city Yongnian District Maide Fasteners Co. Ltd
Contact Now

Heavy Duty Flat Metal Washers Plate Round Carbon Steel Prevent Loosening / Leaks

  • 1
  • 2

Brand Name : MAIDE

Model Number : M3-M56

Certification : ISO

Place of Origin : Yongnian,Hebei,China

MOQ : 1TON

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7-30work days

Packaging Details : Bags (25kg)

Material : Iron

Size : M3-M52

Grade : 4.8

Color : White & Yellow

Standard : DIN

Contact Now

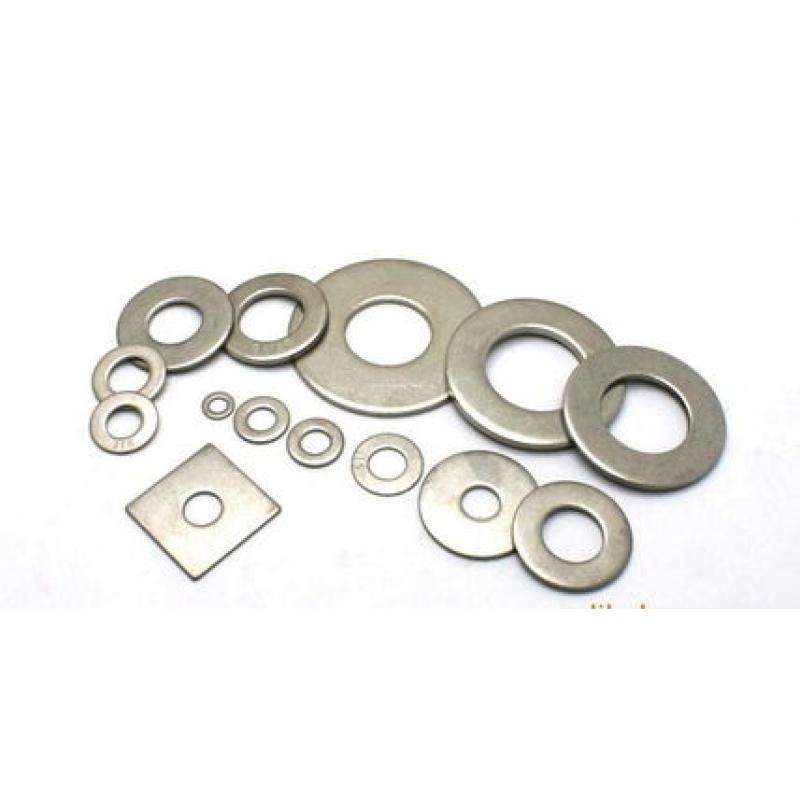

Round Carbon Steel Heavy Duty Flat Metal Washers Palte Hot Dip Galvanized​

Product Description

Flat washers are usually thin pieces of various shapes to reduce friction, prevent leaks, isolate, prevent loosening, or distribute pressure. This material is used in many materials and structures to perform a variety of similar functions. Due to the limitations of the material and process of the threaded fasteners, the bearing surfaces of the fasteners such as the bolts are not large, so that the surface of the parts to be joined is protected to reduce the compressive stress of the bearing surface, and washers are used. In order to prevent loosening of the connection pair, loose-proof spring washers and multi-tooth lock washers, round nut stop washers and saddle-shaped, corrugated, conical elastic washers are used.
Flat washers are mainly used to reduce the pressure. When some parts are tightened with large axial forces, the washers are easily pressed into a dish shape. In this case, the material can be changed and the hardness can be improved.

The Role of Flat Mat

1. Increase the contact area between the screw and the machine.


2. Eliminate damage to the surface of the machine when the spring pad is unloaded. When used, it must be a spring pad and a flat pad. The flat pad is facing the surface of the machine. The spring pad is between the flat pad and the nut.

Flat pad standard


National standards are different.
Here is the United States flat pad standard:

Specification Minor Diameter Outside Diameter Thickness Tolerance Thickness Tolerance Disintegration
USS 3/16 6.22~6.73 14.15~14.66 0.91~1.65 0.91~1.40
1.40~1.65
USS 1/4 7.80~8.31 18.47~19.02 1.30~2.03 1.30~1.65
1.65~2.03
USS 5/16 9.40~9.91 22.05~22.99 1.63~2.64 1.63~2.20
2.20~2.64
USS 3/8 11.00~11.51 25.22~26.16 1.63~2.64 1.63~2.20
2.20~2.64
USS 7/16 12.57~13.08 31.57~32.51 1.63~2.64 1.63~2.20
2.20~2.64
USS 1/2 14.15~14.60 34.75~35.69 2.18~3.35 2.18~2.70
2.70~3.00
3.00~3.35
USS 9/16 15.75~16.26 37.13~38.07 2.18~3.35 2.18~2.70
2.70~3.00
3.00~3.35
USS 5/8 17.30~18.24 44.27~45.21 2.74~4.06 2.74~3.20
3.20~3.60
3.60~4.06
USS 3/4 20.45~21.39 50.62~51.56 3.10~4.50 3.10~3.60
3.60~4.20
4.20~4.50
USS 7/8 23.65~24.58 56.97~57.91 3.45~4.88 3.45~4.00
4.00~4.30
4.30~4.88
USS 1 26.80~27.74 63.32~64.26 3.45~4.88 3.45~4.00
4.00~4.30
4.30~4.88
USS 11/8 31.57~32.51 69.67~70.61 3.45~4.88 3.45~4.00
4.00~4.30
4.30~4.88
USS 11/4 34.75~35.69 76.02~76.96 3.45~4.88 3.45~4.00
4.00~4.30
4.30~4.88
USS 13/8 37.85~39.24 82.30~83.69 3.89~5.41 3.89~4.40
4.40~5.00
5.00~5.41
USS 11/2 41.02~42.42 88.65~90.04 3.89~5.41 3.89~4.40
4.40~5.00
5.00~5.41
USS 15/8 44.20~45.59 95.00~96.39 3.89~5.41 3.89~4.40
4.40~5.00
5.00~5.41
USS 13/4 47.37~48.77 101.35~102.74 3.89~5.41 3.89~4.40
4.40~5.00
5.00~5.41
USS 17/8 50.55~51.04 107.70~109.09 3.89~5.41 3.89~4.40
4.40~5.00
5.00~5.41
USS 2 53.72~55.12 114.05~115.44 3.89~5.41 3.89~4.40
4.40~5.00
5.00~5.41

Heavy Duty Flat Metal Washers Plate Round Carbon Steel Prevent Loosening / Leaks


Product Tags:

hardened flat washer



heavy duty flat washer


China Heavy Duty Flat Metal Washers Plate Round Carbon Steel Prevent Loosening / Leaks wholesale

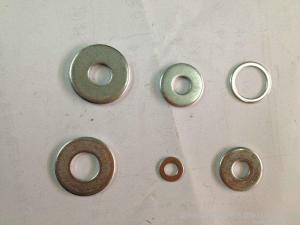

Heavy Duty Flat Metal Washers Plate Round Carbon Steel Prevent Loosening / Leaks Images
